Caframo Ecofans

• Size:
  Base 121 x 82mm
   (4.75 x 3.25”).
  Height 248mm (9.75”)
  from base to top of
  blade, excluding handle.
• Blade diameter
   232mm (9”)
• The Ecofan 812 moves up to 175 Cubic Feet
  of Air per minute. (CFM)
• 50 CFM at 85 ^o C
  175 CFM at 345^o C

The 812 AirMax will provide the highest air flow and start working at the lowest temperature so this is the ultimate choice, for rooms larger than 240sq. ft.

• Size:
  Base 121 x 82mm
  (4.75 x 3.25”).
  Height 248mm (9.75”)
  from base to top of
  blade, excluding handle.
• Blade diameter
   232mm (9”)
• The Ecofan 812 moves up to 125 Cubic Feet
  of Air per minute. (CFM)
• 50 CFM at 100^o C
  125 CFM at 345^o C

The 810 UltrAir will provide slightly less air movement and start to work at a slightly higher temperature than the 812 AirMax but still provides excellent results for rooms up to 240sq. ft.

• Size:
  Base 100 x 75mm
  (4 x 3”).
  Height 235mm (9.25”) from base to top of
  blade, excluding handle.
• Blade diameter
   205mm (8”)
• The Ecofan 800 moves up to 100 Cubic Feet
  of Air per minute. (CFM)
• 50 CFM at 110^oC
  100 CFM at 345^o C

The Original 800 Ecofan is effective for rooms up to
120 sq. ft for a minimum outlay

• Size:
  Base 100 x 75mm
   (4 x 3”).
  Height 165mm (6.5”) from base to top of
  blade, excluding handle.
• Blade diameter
  160mm (6.3”)
• The Ecofan 815 moves up to 85 Cubic Feet
  of Air per minute. (CFM)
• 50 CFM at 115^oC
  85 CFM at 345^o C

The Original Mini 815 is the smallest Ecofan with an operating height of just 165mm (6.5”) making it a suitable option for
limited spaces.

• Size:
  Base 162 x 61mm
   (6.4 x 2.4”).
  Height 165mm (6.5”) from base to top of
  blade, excluding handle.
• Blade diameter
  160mm (6.3”)
• The Ecofan 815 moves up to 85 Cubic Feet
  of Air per minute. (CFM)
• 50 CFM at 75^oC
  85 CFM at 345^o C

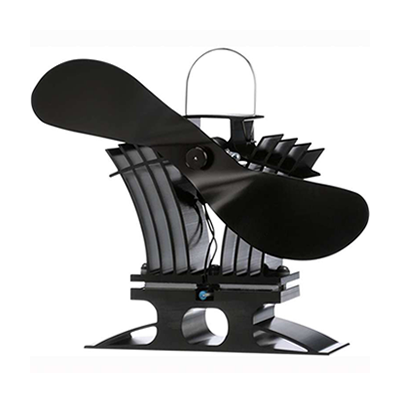

The 806 BelAir is designed for use on the lower stove-top operating temperatures found on many gas, pellet or contemporary stoves.
