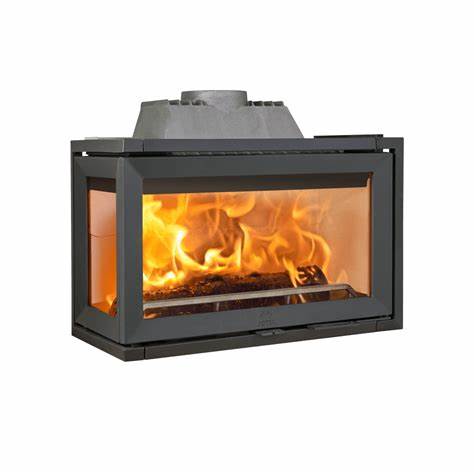

Jotul i620




click the images to enlarge

Jøtul I 620 is easy to install and is just as suitable as a fireplace insert for open/old fireplaces as for fireplaces with a more contemporary design. It is up to you whether you want glass on one, two or three sides. Despite its size, this insert is designed to burn at an optimal level even at low effect. The burn chamber is light with burn plates made from white vermiculite and durable white enamelled cast iron. Symbols on the air-vents facilitate correct use of the fireplace. Equipped as standard with a slim, removable decorative frame that offers a smooth transition to the firewall. Jøtul I 620 F has glass in front.









Body material Cast Iron
Rated output 9kw
SIA Ecodesign
No
Smoke control area approved Yes
Cleanburn / Airwash
Yes
Efficiency 77%
Room vent required
Yes
External air supply option
Yes
Flue connection 150mm - top or rear interchangable
Maximum log length 600mm
Fuel type
Wood
Grate / Ashpan
No
Suitable for 12mm Hearth Yes
Weight 170kg

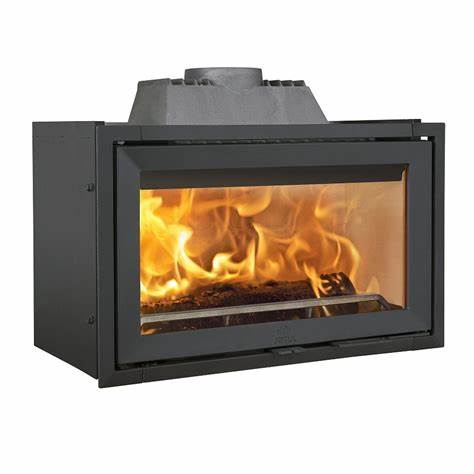

i 520 F (front glass)

i 520 FL (front & left glass)

i 520 FR (front & right glass)

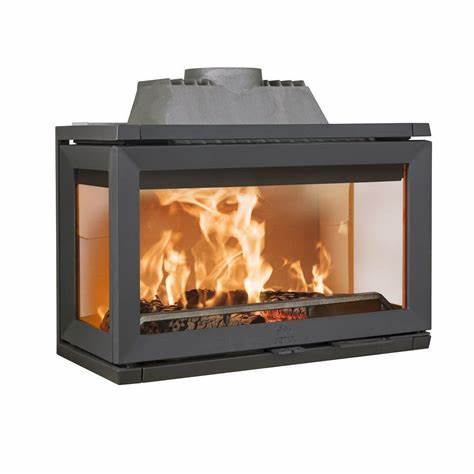

i 520 FRL (front, left & right glass)
