Jotul F230 Series


click the images to enlarge

This wood-burning stove has simple, clean lines, which give it a timeless expression. Hareide Design has utilised the design-friendly properties of cast iron and designed a stove with a soft overall impression and great flame view. Jøtul F 230 comes with or without side glass. The cool-to-touch handle is located on the top of the door. A magnetic door closure mechanism makes the heavy, solid door easy to close. This is a furnace with groundbreaking combustion technology, which allows for easy installation and retrofitting. Integrated supply air through the chimney makes the F 230 ideal for new, modern low energy houses built according to today's requirements. The stove can be connected to an existing flue and standard steel flue without supply air.







Body material Cast Iron
Rated output 6kw
SIA Ecodesign
Yes - more information
Smoke control area approved Yes
Cleanburn / Airwash
Yes
Efficiency 80%
Room vent required
Yes
External air supply option
Yes
Flue connection 150mm - top or rear interchangable
Maximum log length 330mm
Fuel type
Wood
Grate / Ashpan
Ashpan & Grate
Suitable for 12mm Hearth Yes
Weight 129kg

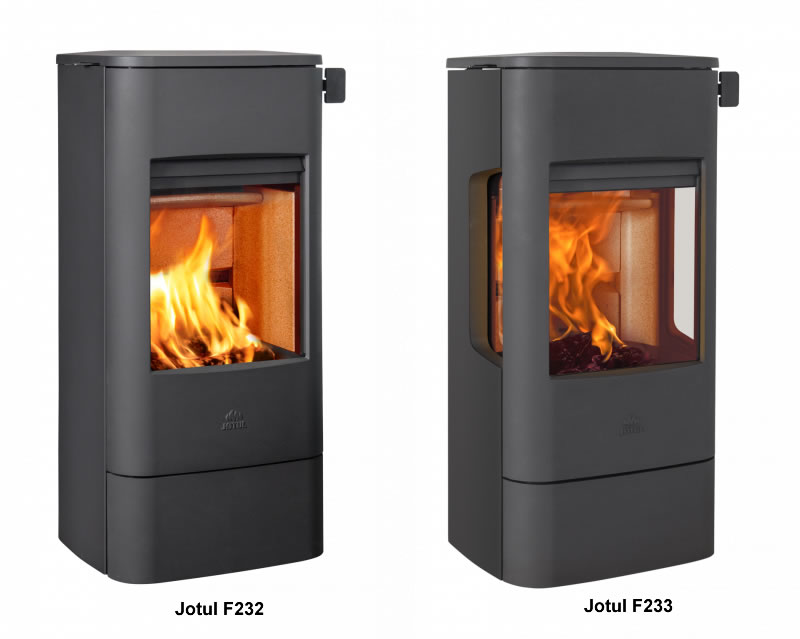

F232 - Solid Sides

F233 - Glass Sides

Height 1012 mm

Width 471 mm

Depth 399 mm
