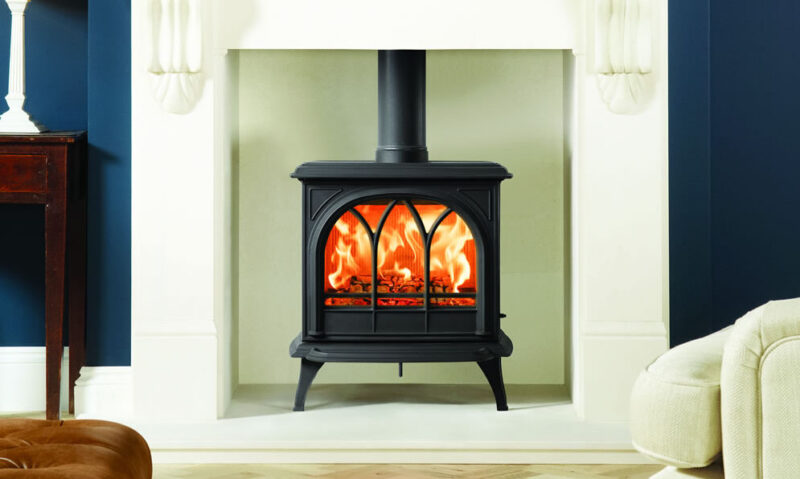

The Ecodesign Stovax Huntingdon 30 wood burning and multi-fuel stove combines traditional cast iron styling with a state-of-the-art convector combustion system that lowers distance to combustibles.
|
| Body material | Cast Iron |
| Rated output | 5kw |
| SIA Ecodesign |
Yes - more information |
| Smoke control area approved | Yes |
| Cleanburn / Airwash |
Yes |
| Efficiency | 82% |
| Room vent required |
No - *unless the house was built after 2008- See Doc J page 17 |
| External air supply option |
No |
| Flue connection | 125mm - top or rear interchangable |
| Maximum log length | 330mm |
| Fuel type |
Wood / Multifuel |
| Grate / Ashpan |
Yes - multifuel version |
| Suitable for 12mm Hearth | No |
| Weight | 130kg |
Wood version
Multifuel version
Plain or Tracery door
Long or Short legs
| A | A1* | B | B1* | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 560mm | 365mm | 592mm | 263mm | 517mm | 469mm | 592mm | 622mm | 671mm | 227mm | 130mm | 150mm | 137mm | 150mm |
*Glass Viewing Area.
