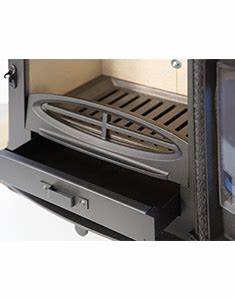

 Charmwood C Five on low stand   C5 Duo fixed grate  Quatraflow system The Quattroflow Air Management System is a revolutionary air management system patented by Charnwood and used on the Aire, Skye, Arc, Cove, Island, Bay, Bembridge and C-Series models.  External air supply The external air kits are a range of devices that enable an outside air supply to be channeled directly into your Charnwood stove.
As well as providing further comfort and operational efficiency for your stove our air kits help overcome issues where the room requires an additional air supply. They are available for all Aire, Skye, Arc, Bay, Cove, Island, C-Series and Bembridge dry models.  Charnwood heatshields Charnwood’s rear heat shields and convection panels are designed specifically for situations where space within the fireplace is limited. The steel heat shield allows minimum rear wall clearances to be reduced.
The heat shield is available in a number of sizes for all Aire, Cove, Island, C-Series, Bembridge and Country dry model  Vertical rear flue adaptor available for all Aire, Skye, Arc, Island, Cove, C-Series, Bembridge and Country models.
This enables you to position the stove further out into the room: away from the wall behind. This will add a depth to the stove of between 115 -196mm depending on the model.  Cooking plates The cast iron plates incorporates conduction fins on the underside and simply replaces the blanking plate on a standard Charnwood stove to create a highly effective hot plate for cooking. click the images to enlarge |

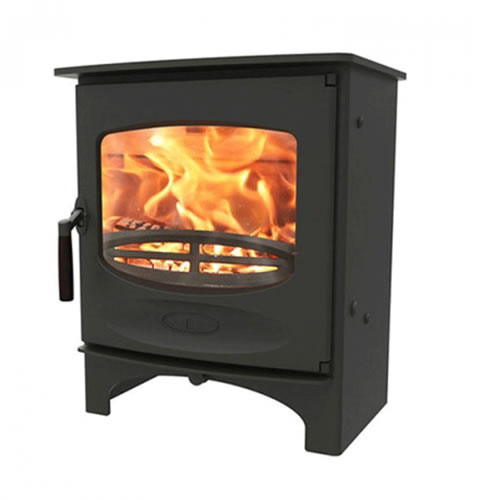

A multi-fuel version of our C-Five. Fitted with a fixed grate the stove burns wood and mineral fuels equally well with high efficiency and low emissions.
The C-Series is one of Charnwood’s latest innovations. A range of classically styled wood burning stoves that feature one single air control and an integrated inlet for ducting external air to improve performance and efficiency.
|
| Body material | Steel body - cast iron door |
| Rated output | 4.9kw |
| SIA Ecodesign |
Yes - more information |
| Smoke control area approved | Yes |
| Cleanburn / Airwash |
Yes |
| Efficiency | 82% |
| Room vent required |
No - *unless the house was built after 2008- See Doc J page 17 |
| External air supply option |
Yes |
| Flue connection | 125mm - top or rear interchangable |
| Maximum log length | 350mm |
| Fuel type |
Wood |
| Grate / Ashpan |
Fixed grate & ashpan |
| Suitable for 12mm Hearth | Yes |
| Weight | 80kg |
Store stand
High Legs
Heat shield
Vertical rear flue adaptor
External Air Kit
