Stovax Riva Studio 1 Freestanding


click the images to enlarge

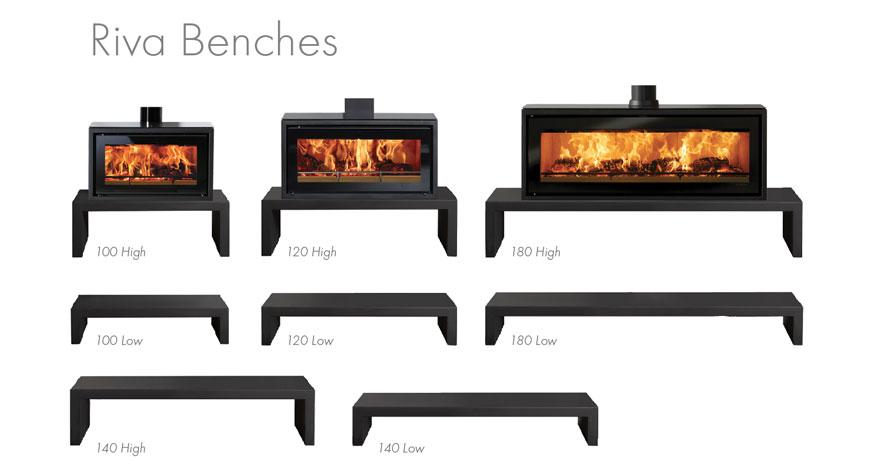

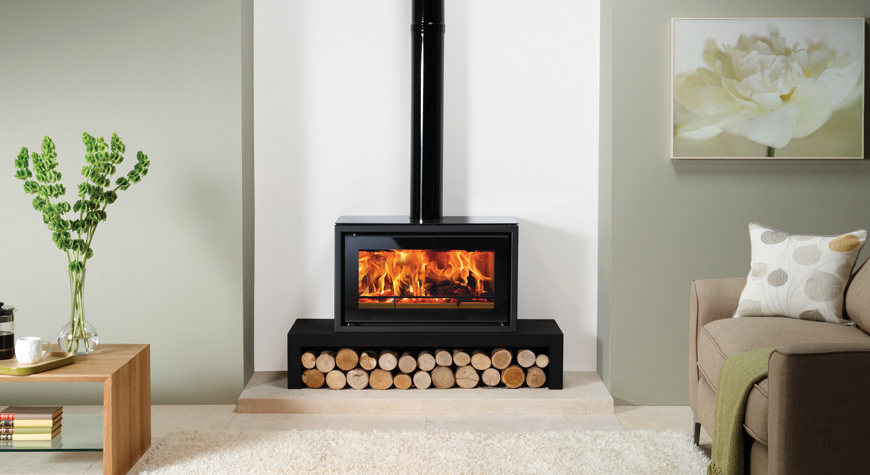

The Stovax Studio 1 Freestanding incorporates the impressive firebox performance of a wood burning inset fire with the welcoming presence of a stove. Available with a number of optional extras to help you create the right look for your home, the Studio 1 Freestanding wood burning stove can be hearth mounted or installed on a Studio Bench. An optional heat shield kit can be fitted to the bench in order to reduce the distance to combustible materials if required.

Other styling options include a black glass top plate, gloss black enamel flue pipe, square section flue covers and flue ring covers, all of which are designed to provide an integrated and cohesive look to your new stove.

Body material Steel
Rated output 5kw
SIA Ecodesign
Yes - more information
Smoke control area approved Yes
Cleanburn / Airwash
Yes
Efficiency 80%
Room vent required
No
External air supply option
Yes
Flue connection 150mm - top or rear interchangable
Maximum log length 450mm
Fuel type
Wood
Grate / Ashpan
No
Suitable for 12mm Hearth No
Weight 110kg



  1. TCL (Technical Combustion Lining) High density thermal liner system
  2. Heated air jets from cleanburn ports burn hydrocarbons in smoke
  3. Airwash air flow
  4. Primary control
  5. Removable handle (Studio 500, 1, 2 & 3) and door opening catch (Studio 500, 1 & 2)
  6. Convected and radiant heat
  7. Convected heat ducting system outlet
  8. Easy fit flue connection
  9. Removable baffles
  10. External air facility (insets only)
  11. Optional fan kit (insets only)
  12. Optional 10˚ flue outlet (insets only – not illustrated)
  13. Optional Smoke Control Kit (Studio 500†, 1 & 2 only – not illustrated)
